Stående skåp

RACKSKÅP 19" FRISTÅENDE 15U/600X600 MED GLASDÖRR SVART (MONTERAD)

Tillverkarens kod: FA01-6615-12B
EAN: 5901969437614
Garanti: 36m
Typ av skap: Fristaende
Storlek: 19"
IKT-höjd: 15 U
Typ av montering: Monterad
Produktbeskrivning

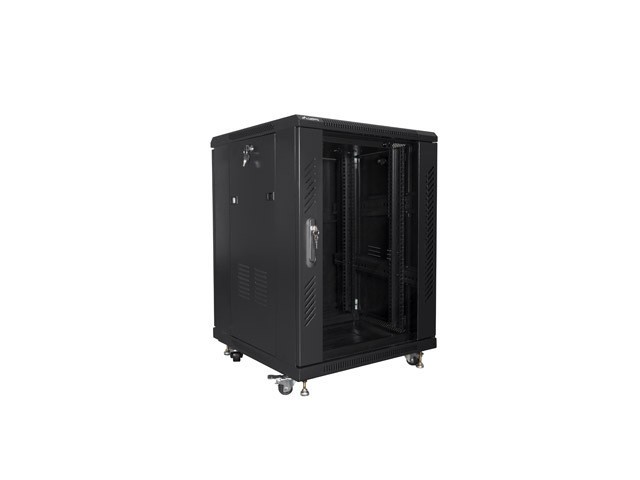

Assembled freestanding Lanberg cabinet FA01-6615-12B, is a solution designed to expand networks, installation of cabling and equipment in size 19” with max. 800kg. loading capacity.

It can be used in networks, server rooms, small, medium businesses and data centers which needs lot of space in cabinet for network equipment's. It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance.

Construction is made of high grade cold rolled steel which characterized by excellent design and high quality of craftsmanship. The cabinet allows full adjustment of the depth of the vertical mounting rails. It is equipped with front tempered glass door with lock and possibility installing on right or left side. It has removable side panels (include locks) and rear solid steel door with lock.

You can put the wiring through entry cable on top and bottom panels (with blank entry panels). The fan tray include 2 fans 230V. In addition, parcel includes additional accessories for rails mounts, M6 cage nuts and blank entry panels.
Construction of the enclosure COMPLETED.

Features:
- Manufacturer: Lanberg,
- Manufacturer's code: FA01-6615-12B,
- Cabinet type: Free standing,
- Body color: Black RAL9004,
- Height: 15U,
- Cabinet dimensions (W x D x H): 600x600x848 mm,
- Height (top panel - bottom panel): 769 mm,
- Height (top panel - ground): 842 mm,
- Height (top panel - ground including screws): 848 mm,
- Floor panel: 4 castors with brake + adjustable legs,
- Internal width spacing between rack rails: 450 mm,
- Width of the spacing between holes of rack rails: 465 mm,
- External width spacing between rack rails: 500 mm,
- Loading capacity: To 800 KG,
- Degree of protection: IP20,
- Top with fan tray: included 2 fans 230V in top cover,
- Doors type: Front - Temper glass, Rear - Steel,
- Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Cable entry panel: Top, Bottom (adjustable),
- Included: Accessory bag, locks for front and rear doors and two side panels, 20 cage nuts M6, Ventilation Panel (2 fans).

Typ av skap
Fristaende
Storlek
19"
IKT-höjd
15 U
Typ av montering
Monterad
Arbetsdjup
520 mm
Typ av främre dörr
Tempererat glas
Typ av bakdörr
Metall
Typ av dörr
Enbladig
Maximal öppningsvinkel för ytterdörren
215 °
Maximal statisk belastning
800 kg
Slotbelopp för fans
2
Antal vertikala skenor
4
Termostat
Nej
LCD-panel
Nej
Färg
Svart
RAL-färg
RAL9004
Klassificering av väderbeständighet
IP20
Ytterdörrens tjocklek
5 mm
Bakdörrens tjocklek
1 mm
Tjocklek pa övre och undre panel
1.2 mm
Sidopanelens tjocklek
1.2 mm
Tjocklek pa monteringsskenor
2 mm
Tjocklek pa ram
1.2 mm
Andra element plattjocklek
1.2 mm
Djup
600 mm
Bredd
600 mm
Höjd
848 mm
Vikt
45.5 kg
Standard
ANSI/EIA RS-310-D, DIN 41491/DEL 1, DIN 41494/DEL 7, ETSI, IEC297-2:1982
Medföljande tillbehör
Bakre las, Ben, Främre las, Hjul med broms, Sidolas, Ventilationspanel (2 fläktar)

Ladda ner filer

Snabbguide (flerspråkig)
Produktkort EN.
Produktkort PL.
Försäkran om överensstämmelse (flerspråkig)
