PDU

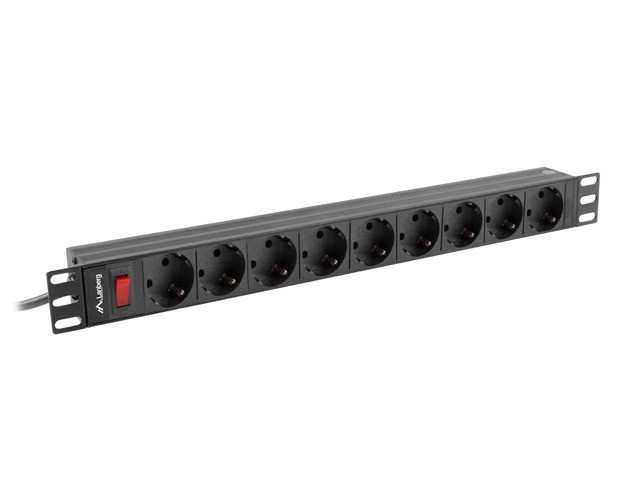

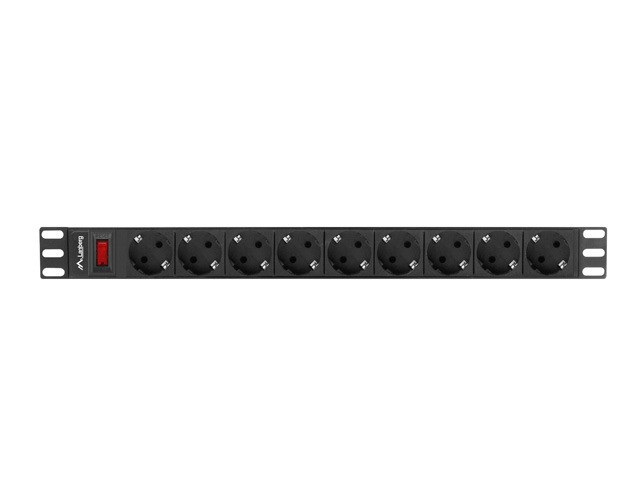

STRÖMFÖRDELNINGSENHET (PDU) 19" 1U 16A 3M 9X SCHUKO UTTAG SVART

Tillverkarens kod: PDU-09F-0300-BK
EAN: 5901969428261
Garanti: 24m
Typ av utlopp: Typ F
Antal uttag: 9
Typ av stickpropp: Uni-schuko
Längd pa kabel: 300 cm
Produktbeskrivning
Lanberg’s PDU (Power distribution unit) surge protector is a solution dedicated to professional applications in the field of power strips. Its construction has been prepared exclusively for horizontal mounting on the front of all types of 19" server cabinets. The strip provides uninterrupted, reliable power supply to devices connected to it, giving its users an additional level of protection.

This particular PDU is equipped with 1 phase power input and additional security feature - current circuit diaphragms to protect the user.

On top of that, for even greater level of security Lanberg’s PDUs all have larger cable cross-section which guarantees full, uninterrupted operation of the device, even when load levels are very high. Due to this, this product can be successfully used in a professional server environment as a safe, reliable and versatile power distribution unit.

Product specification:

- Height: 1U,
- Voltage range: 220V ~ 250V,
- Frequency range: 50Hz / 60Hz,
- Maximum power of the strip: 4000W,

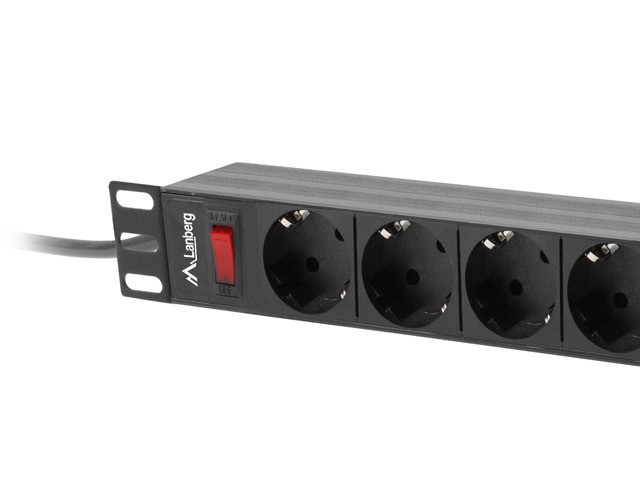

- Overcurrent / overload protection: built-in the switch,
- Max. work intensity of the switch: 16A,
- PDU material: anodized aluminum,

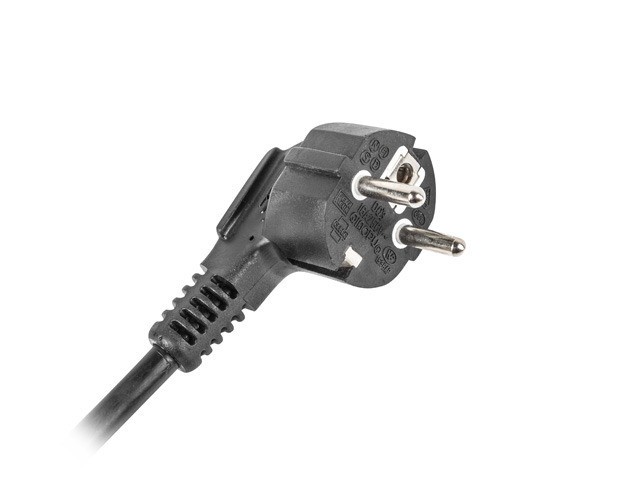

- Input cable plug type: uni-schuko (DIN 49441), 16A,
- Input cable pins type: solid, brass,
- Type and number of output sockets: schuko x9 (DIN VDE 0620-1),
- Output socket pin type: full, brass,
- Length and type of cable: 3m, 3-core, cross-section 1.5mm^2. Compliant with VDE,
- Rackmount ears (can be reversed, not detached),
- Color: Black.

Package content:
- PDU
- User manual
- M6 screws: 4 pcs

Typ av utlopp
Typ F
Antal uttag
9
Typ av stickpropp
Uni-schuko
Längd pa kabel
300 cm
Aktuell ränta
16 A
Maximal effekt
4000 W
Klassificering av väderbeständighet
IP20
Försäkring
Nej
Färg
Svart
Specialiserad
Rack
Växel
Ja
Storlek
19"
IKT-höjd
1 U
Monteringsriktning
Horisontell
Monteringshal
Ja
Material
Anodiserad aluminium
Längd
45 mm
Bredd
430 mm
Höjd
44.45 mm
Vikt
1 kg

Ladda ner filer

Rysunek|Drawing
Snabbguide (flerspråkig)
Produktkort EN.
Produktkort PL.
Produktkort (flerspråkigt)
Försäkran om överensstämmelse (flerspråkig)
