Serverskåp

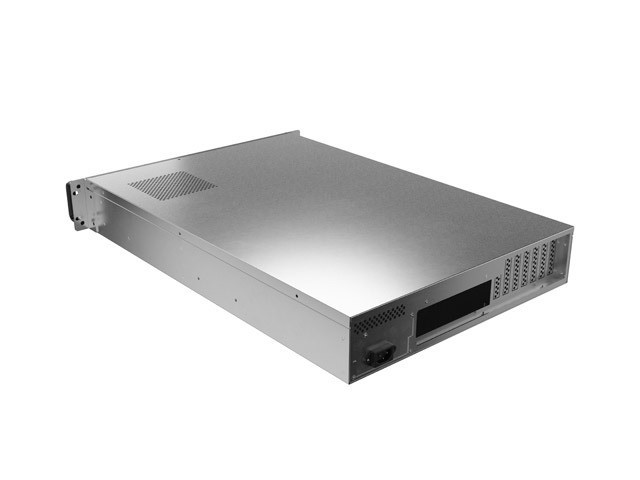

E-ATX SERVERSKÅP 650/12 19"/2U

Tillverkarens kod: SC01-6502-12B
EAN: 5901969441727
Garanti: 24m
IKT-höjd: 2 U
Storlek: 19"
Formfaktor för moderkort: ATX, E-ATX, ITX, Micro-ATX, SSI CEB
Antal installerade fläktar: 7
Produktbeskrivning
Banner

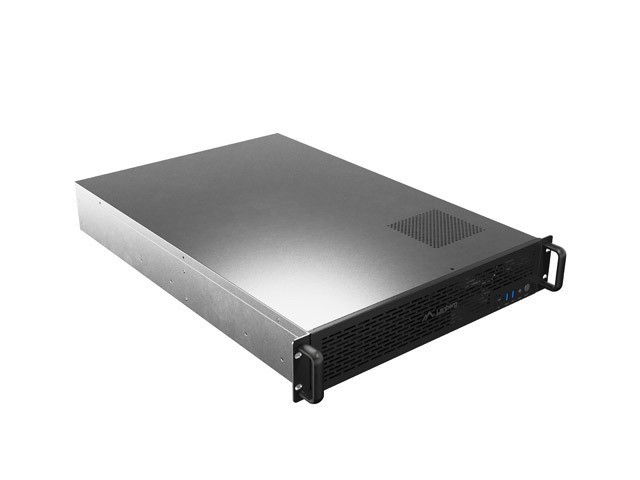

RACK 19" 2U server cases from Lanberg

Our 19" RACK server chassis is an excellent choice for both professional data centers and advanced individual users. This 2U enclosure is designed to meet the most demanding needs in server construction and operation, while having a real impact on the performance of the entire system. Thanks to its well-thought-out design, it will excel in business and industrial environments where reliability, flexibility and efficient airflow are important.

The new series are advanced server enclosures with a variety of fan configurations and mounting space, allowing you to expand your hardware capabilities even more easily. These enclosures are distinguished by their robust construction, space for numerous storage media, and rich I/O panels for quick connection of devices via USB 3.0 ports. Importantly, our models support a variety of motherboard standards, and practical accessories are included for easy installation. As a result, each server can be configured optimally for server operation and flexibly adapted to changing needs.

ATX, E-ATX, ITX, Micro-ATX and SSI CEB motherboards supported

The SC01-6502-12B server case is compatible with E-ATX, ATX, ITX, Micro-ATX and SSI CEB motherboards. This standard is ideal for high-performance servers and workstations based on Intel Xeon and AMD Epyc processors (X399/C600 chipsets). It provides a wide range of possibilities for component selection and scaling of computing power, allowing the creation of diverse configurations: from basic servers to advanced systems in data centers, large networks and industrial applications.

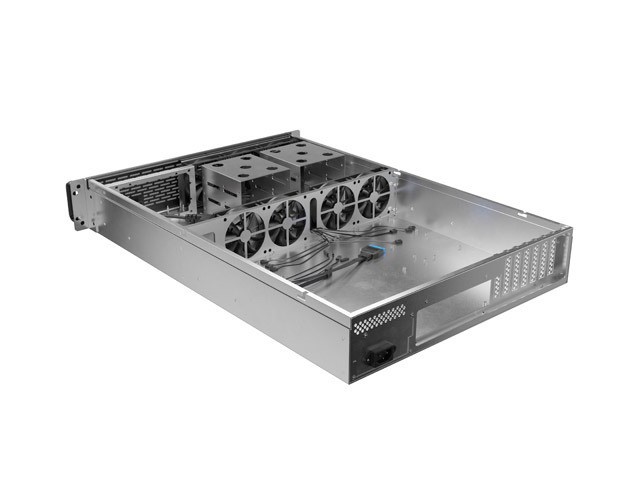

Advanced cooling: 7 PWM 80 mm fans

Good cooling and free airflow are key features for the proper operation of components. To ensure optimal operating temperatures for high-performance components, the SC01-6502-12B server chassis is equipped with up to 7 high-performance 80 mm PWM fans with adjustable speed (900-2600 RPM). At maximum speed, they maintain a service life of up to 50,000 hours and generate a noise level of 26.1 dB. Thanks to the perforated front with a replaceable dust filter, air flows freely through the interior, ensuring optimal operating conditions in a server room or RACK cabinet.

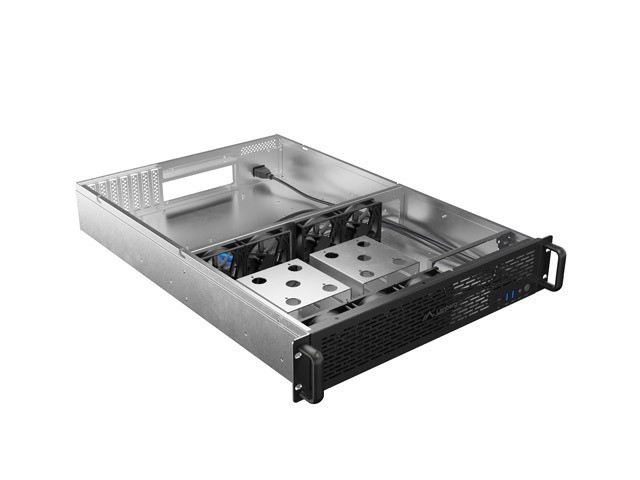

Easy expansion with space for multiple hard drives and SSDs

The design provides, when properly configured, space for 4 2.5" drives and as many as 6 3.5" drives to create a large storage space. This configuration allows you to easily store and segregate large volumes of data, which will be appreciated especially by companies growing at a rapid pace.

Solidly constructed server enclosures:
durability and resistance to damage

Each Lanberg server case is made of galvanized steel as thick as 1.2 mm, which definitely increases its resistance to mechanical damage. Compared to traditional solutions, such as home tower server enclosures or the less well-made some ATX server enclosures, our RACK enclosure models stand out for their additional structural rigidity. This translates into years of reliability in the operation of any server. As a result, you can rest assured that your investment will bring you long-lasting benefits and remain stable even under heavy loads.

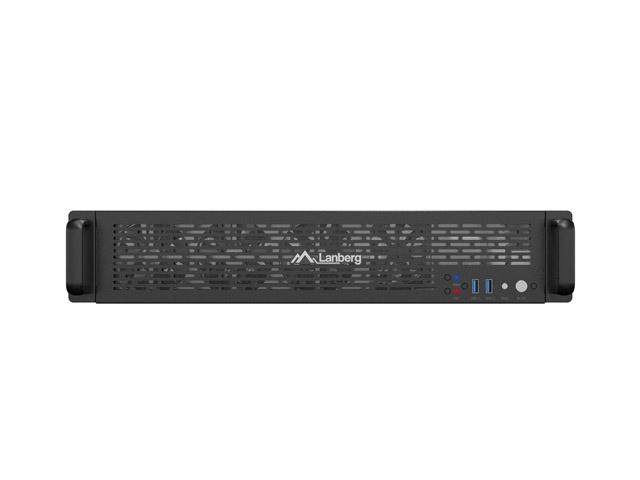

Connect multiple components to a rich I/O panel

A server and a server case are a duo that requires quick access to the most important ports. That's why you'll find 2 USB 3.0 Type-A ports on the front panel of our RACK models, as well as Power and Reset buttons. This makes server management convenient and intuitive, whether you're working in a professional server room or as part of an extended setup in a small or medium-sized business.

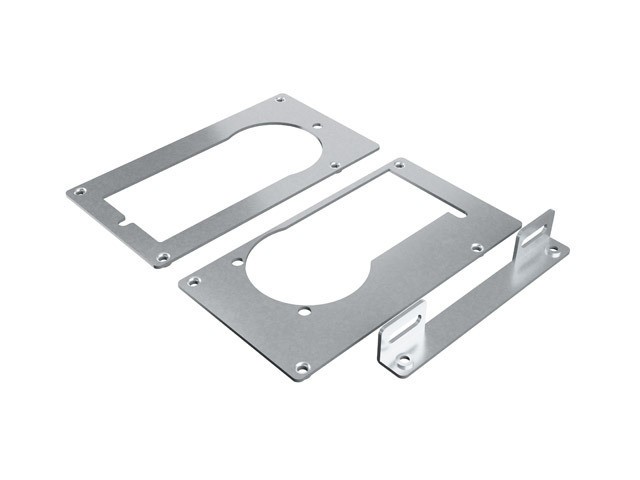

Dedicated accessories for suitable power supply
and mounting in 19" RACK cabinets

Lanberg server cases in this series offer a rich set of accessories: interchangeable adapters for Flex ATX, ATX, SFX power supplies, 2x PWM splitters and a key lock. With these, you can easily mount the server in a 19" RACK rack and customize the power supply. The complete accessory package means that even less experienced users can quickly get their server up and running.

See the SC01-6502-12B server case in action!

Specification

ICT height 2 U
Motherboard form factor Micro-ATX, ATX, E-ATX, SSI CEB, ITX
Size 19"
Number of installed fans 7
Installed fans 7x 80 mm PWM
Rotational speed 900 - 2600 RPM
Fan lifetime 50000 h
Maximum CPU cooling height 72 mm
Fan controller PWM
Fan noise level 26.10 dB
Number of 2.5" drive bays (SSD/HDD) 4
Number of 3.5" drive bays (SSD/HDD) 6
Number of expansion slots 7
Compatible power supply standard ATX, SFX, FLEX
Power supply included No
Protections Anti-dust filters
Connectors USB 3.0 Type-A
I/O panel Power & Reset button, USB 3.0 Typ-A x2
Hot-swap No
Work signal LED
Material Steel, Galvanized steel
Colour Black
Environment humidity 35 - 85 %
Working depth 650 mm
Upper & lower panel thickness 1.2 mm
Side panel thickness 1.2 mm
Other elements sheet thickness 1.2 mm
Length 650 mm
Width 430 mm
Height 89 mm
Weight 9.4 kg
Included Accessories 2x PWM 4-PIN fan splitter , ATX, SFX power supply mounting adapter, Flex ATX power supply mounting adapter, 1U custom power supply mounting adapter (100mm wide), Flex ATX power supply rear mounting bracket, Replaceable front dust filter

IKT-höjd
2 U
Storlek
19"
Formfaktor för moderkort
ATX, E-ATX, ITX, Micro-ATX, SSI CEB
Antal installerade fläktar
7
Startsp¦nning
7x 80 mm PWM
Rotationshastighet
900 - 2600 RPM
Fläktens livslängd
50000 h
Maximal höjd för CPU-kylning
72 mm
Ljudniva fran fläkt
1,27 mmH2O
Fläktkontroll
PWM
Antal 2,5" enhetsfack (SSD/HDD)
4
Antal 3,5" enhetsfack (SSD/HDD)
6
Antal expansionsplatser
7
Kompatibel standard för strömförsörjning
ATX, FLEX, SFX
Strömförsörjning ingar
Nej
Skyddsatgärder
Filter mot damm
Anslutningar
USB 3.0 typ-A
I/O-panel
Ström- och aterställningsknapp, USB 3.0 Typ-A x2
Hot-swap
Nej
Arbetssignal
LED
Material
Galvaniserat stal, Stal
Färg
Svart
Luftfuktighet i omgivningen
35 - 85 %
Arbetsdjup
650 mm
Tjocklek pa övre och undre panel
1.2 mm
Sidopanelens tjocklek
1.2 mm
Andra element plattjocklek
1.2 mm
Längd
650 mm
Bredd
430 mm
Höjd
89 mm
Vikt
9.4 kg
Medföljande tillbehör
1U anpassad monteringsadapter för nätaggregat (100 mm bred), 2x PWM 4-PIN fläktsplitter , ATX-, SFX-adapter för montering av nätaggregat, Bakre monteringsfäste för Flex ATX-strömförsörjning, Flex ATX-adapter för montering av nätaggregat, Utbytbart fr¦mre dammfilter

Ladda ner filer

Snabbguide (flerspråkig)
Produktkort PL.
Produktkort EN.
Försäkran om överensstämmelse (flerspråkig)
