Serverskåp

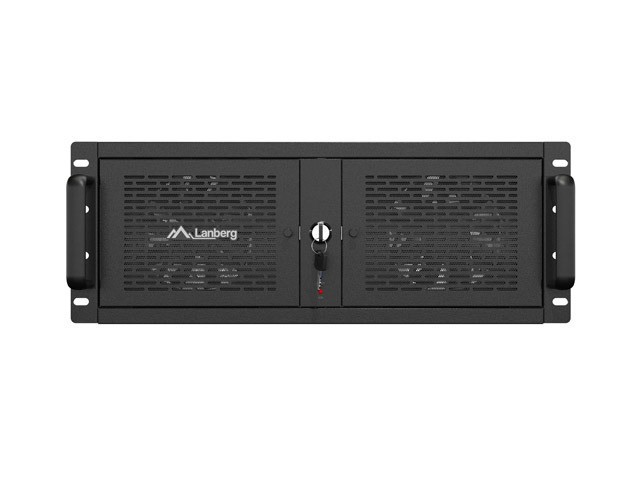

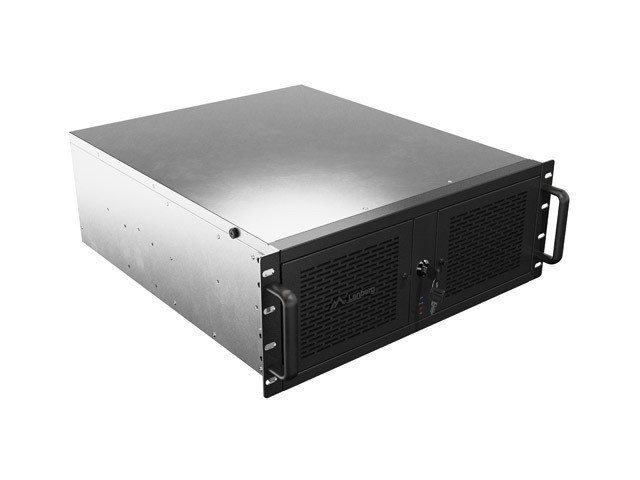

ATX SERVERSKÅP 520/12 19"/4U

Tillverkarens kod: SC01-5204-12B
EAN: 5901969441734
Garanti: 24m
IKT-höjd: 4 U
Storlek: 19"
Formfaktor för moderkort: ATX, ITX, Micro-ATX, SSI CEB
Antal installerade fläktar: 5
Produktbeskrivning
Banner

RACK 19" 4U server cases from Lanberg

Our 19" RACK server cases are an excellent choice for both professional data centers and advanced individual users. This 4U enclosure is designed to meet the most demanding needs in server construction and operation, while having a real impact on the performance of the entire system. Thanks to its well-thought-out design, it will excel in business and industrial environments where reliability, flexibility and efficient airflow are important.

The new series are advanced server enclosures with a variety of fan configurations and mounting space, allowing you to expand your hardware capabilities even more easily. These enclosures are distinguished by their robust construction, space for numerous storage media, and rich I/O panels for quick connection of devices via USB 3.0 ports. Importantly, our models support a variety of motherboard standards, and practical accessories are included for easy installation. As a result, each server can be configured optimally for server operation and flexibly adapted to changing needs.

Supported ATX, ITX, Micro-ATX and SSI EEB motherboards

The SC01-5204-12B server case is compatible with ATX, ITX, Micro-ATX and SSI EEB motherboards. This standard is ideal for high-performance servers and workstations based on Intel Xeon and AMD Epyc processors (X399/C600 chipsets). It provides a wide range of possibilities for component selection and scaling of computing power, allowing you to create diverse configurations: from basic servers to advanced systems in data centers, large networks and industrial applications. Thoughtful design and ample space make server expansion simple and cost-effective in the long term.

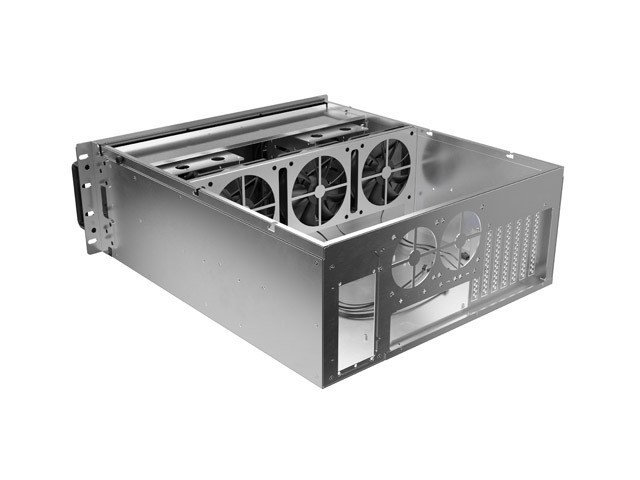

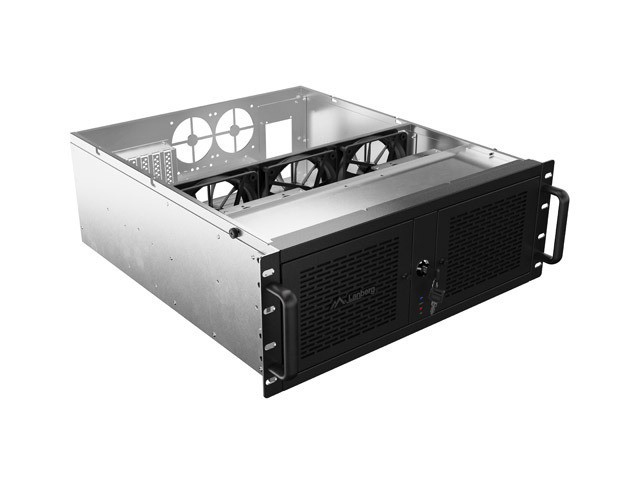

Advanced cooling: 5 PWM 120 mm fans

Good cooling and free airflow are key features for the proper operation of components. To ensure optimal operating temperatures for high-performance components, the SC01-5204-12B server case is equipped with up to 5 large 120 mm PWM fans with adjustable speed (600-1500 RPM) and low noise level (33 dB).In addition, 2x additional 80×80 mm fans can be mounted on the rear wall of the case. Thanks to the perforated front with replaceable dust filter, air flows freely through the interior, ensuring optimal working conditions in a server room or RACK cabinet.

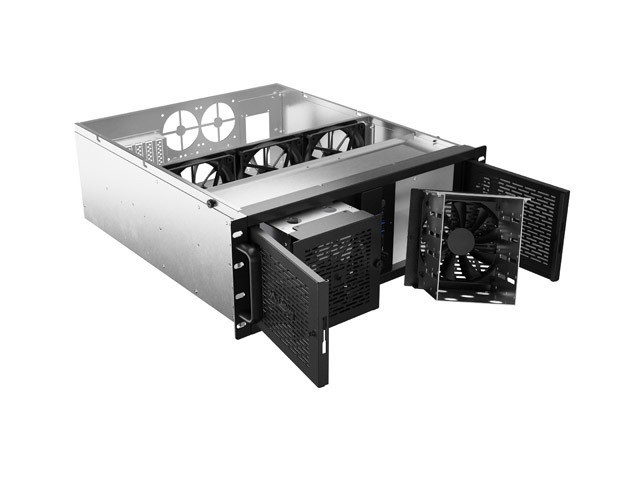

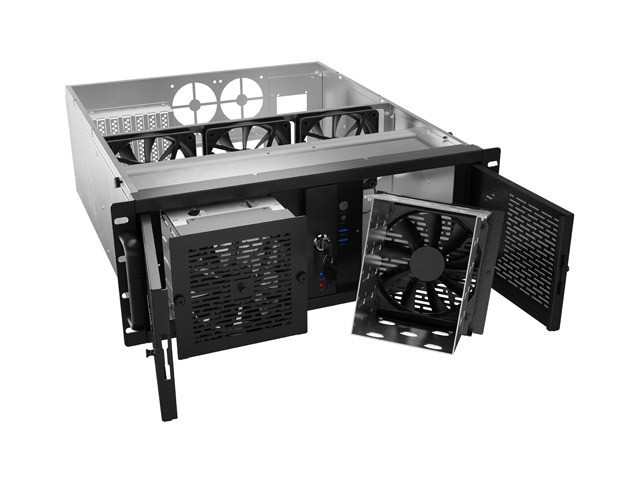

Easy expansion with space for multiple hard drives and SSDs

The design provides space for 3 2.5" drives and as many as 10 3.5" drives when properly configured, giving you the ability to create massive storage space. With access to the 3.5" drive bays without having to unscrew the top cover, the SC01-5204-12B server case allows you to easily expand your disk configuration without having to disassemble or modify the entire system. For users focused on scalability and time saving, such a solution is extremely practical and convenient.

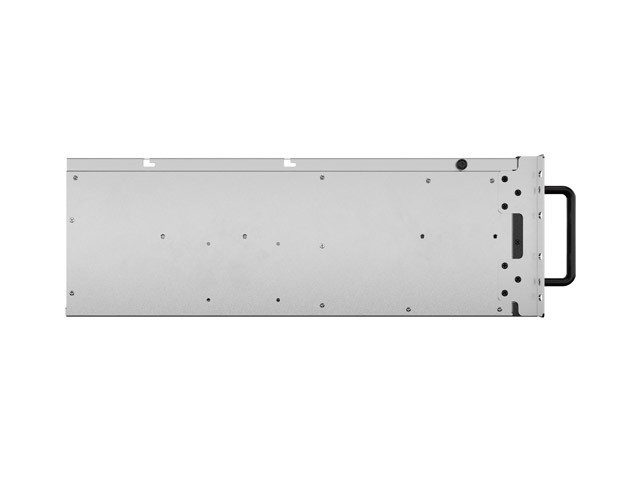

Solidly constructed server enclosures:
durability and resistance to damage

Each Lanberg server case is made of galvanized steel with a thickness of as much as 1.2 mm, which significantly increases its resistance to mechanical damage. Compared to traditional solutions such as home tower server cases or the less well-made some ATX server cases, our RACK cabinet models stand out for their extra structural rigidity. This translates into years of reliability in the operation of any server. As a result, you can rest assured that your investment will bring you long-lasting benefits and remain stable even under heavy loads.

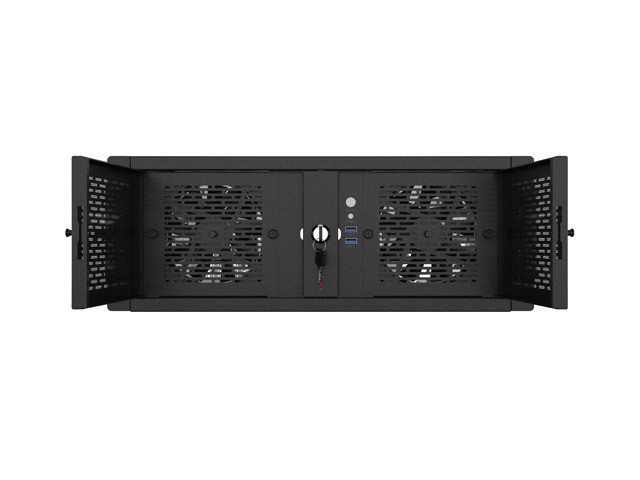

Connect multiple components to a rich I/O panel

A server and a server case are a duo that requires quick access to the most important ports. That's why you'll find 2 USB 3.0 Type-A ports on the front panel of our RACK models, as well as Power and Reset buttons. This makes server management convenient and intuitive, whether you're working in a professional server room or as part of an extended setup in a small or medium-sized business.

Dedicated accessories for suitable power supply
and mounting in 19" RACK cabinets

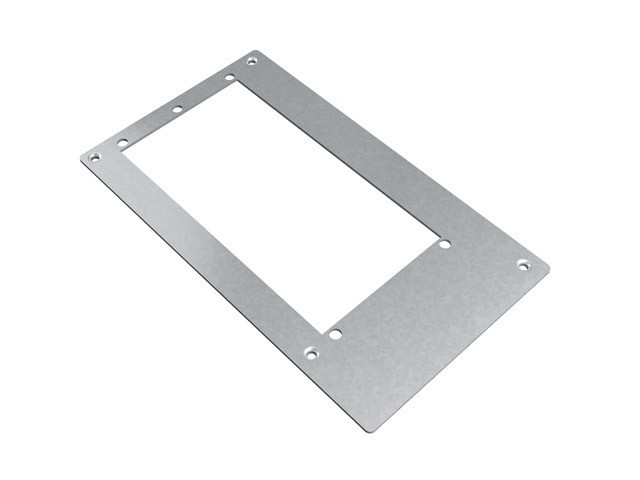

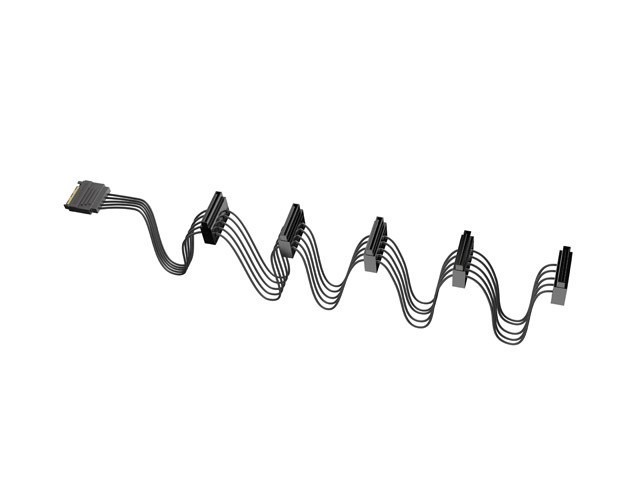

Lanberg server cases in this series offer a rich set of accessories: 1x SFX power supply adapter, 2x PWM splitters, two 5x SATA power splitters and a key lock. With these, you can easily mount the server in a 19" rack and customize the power supply. The complete accessory package means that even less experienced users can quickly get their server up and running.

See the SC01-5204-12B server case in action!

Specification

ICT height 4 U
Motherboard form factor ATX, ITX, Micro-ATX, SSI EEB
Size 19"
Number of installed fans 5
Installed fans 5x 120 mm PWM
Rotational speed 600 - 1500 RPM
Fan lifetime 50000 h
Maximum CPU cooling height 158 mm
Fan controller PWM
Fan noise level 33 dB
Number of 2.5" drive bays (SSD/HDD) 3
Number of 3.5" drive bays (SSD/HDD) 10

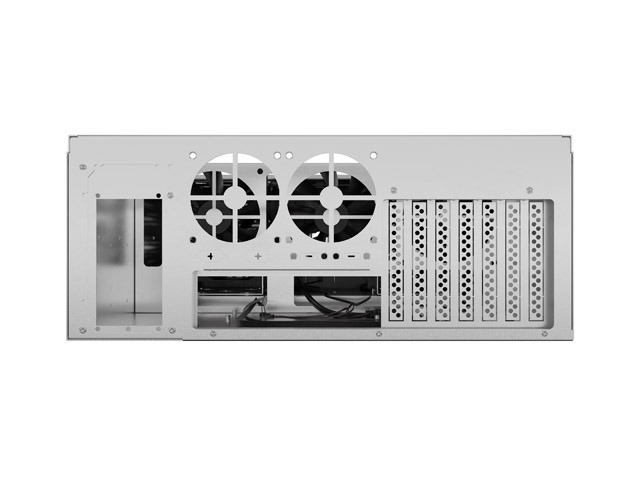

Number of expansion slots 7
Compatible power supply standard ATX, SFX
Power supply included No
Protections Anti-dust filters
Connectors USB 3.0 Type-A
I/O panel Power & Reset button, USB 3.0 Typ-A x2
Hot-swap No
Work signal LED
Material Steel, Galvanized steel
Colour Black
Environment humidity 35 - 85 %
Working depth 520 mm
Upper & lower panel thickness 1.2 mm
Side panel thickness 1.2 mm
Other elements sheet thickness 1.2 mm
Length 520 mm
Width 430 mm
Height 176 mm
Weight 12.5 kg
Included Accessories 2x PWM 4-PIN fan splitter , 2x power splitter SATA x5, SFX power supply mounting adapter

IKT-höjd
4 U
Storlek
19"
Formfaktor för moderkort
ATX, ITX, Micro-ATX, SSI CEB
Antal installerade fläktar
5
Startsp¦nning
5x 120 mm PWM
Rotationshastighet
600 - 1500 RPM
Fläktens livslängd
50000 h
Maximal höjd för CPU-kylning
158 mm
Ljudniva fran fläkt
33 dB
Fläktkontroll
PWM
Antal 2,5" enhetsfack (SSD/HDD)
3
Antal 3,5" enhetsfack (SSD/HDD)
10
Antal expansionsplatser
7
Kompatibel standard för strömförsörjning
ATX, SFX
Strömförsörjning ingar
Nej
Skyddsatgärder
Filter mot damm
Anslutningar
USB 3.0 typ-A
I/O-panel
Ström- och aterställningsknapp, USB 3.0 Typ-A x2
Hot-swap
Nej
Arbetssignal
LED
Material
Galvaniserat stal, Stal
Färg
Svart
Luftfuktighet i omgivningen
35 - 85 %
Arbetsdjup
520 mm
Tjocklek pa övre och undre panel
1.2 mm
Sidopanelens tjocklek
1.2 mm
Andra element plattjocklek
1.2 mm
Längd
520 mm
Bredd
430 mm
Höjd
176 mm
Vikt
12.5 kg
Medföljande tillbehör
2x PWM 4-PIN fläktsplitter , 2x strömfördelare SATA x5, Monteringsadapter för SFX-strömförsörjning
