PDU

GRENUTTAG RACK PDU 19" 1U 10A 5X SCHUKO 2M SVART C14

Tillverkarens kod: PDU-05F-0200-IEC-BK
EAN: 5901969441819
Garanti: 24m
Typ av utlopp: Typ F
Antal uttag: 5
Typ av stickpropp: IEC C14
Längd pa kabel: 200 cm
Produktbeskrivning
Banner

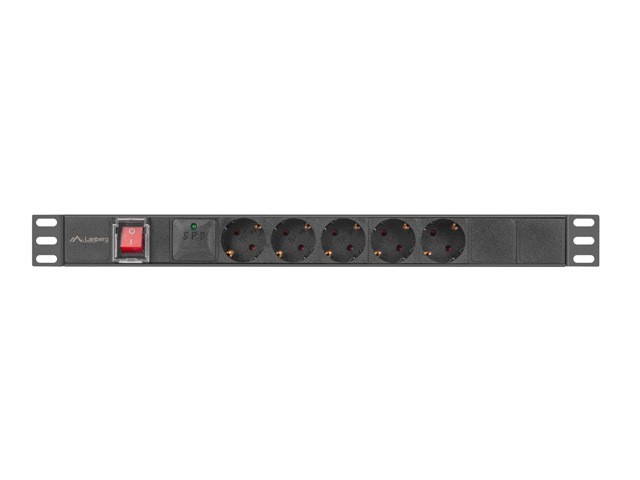

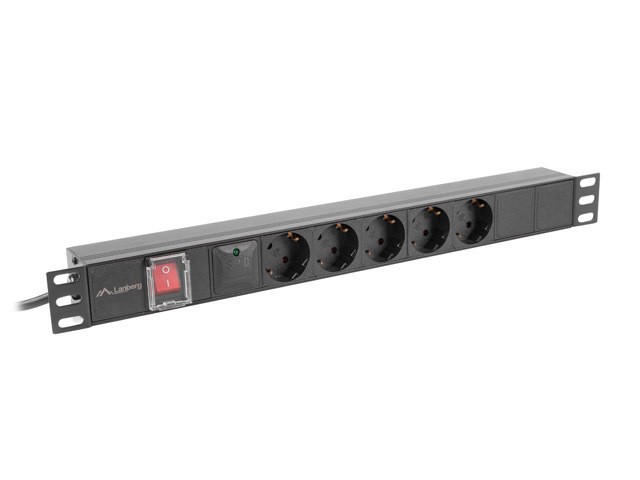

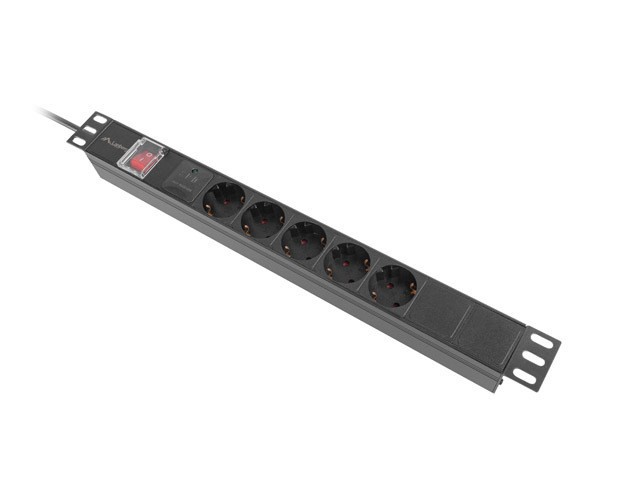

POWER STRIP RACK PDU 19" 1U LANBERG
10 A, 5 x 230 V Schuko, 2 m, BLACK C14

The PDU 1U rack power strip series from Lanberg is a dedicated solution for professional and industrial applications. Available in different versions, with French (schuko), European (PL) and IEC type sockets, it allows easy adaptation to diverse network and server requirements. The strips are compatible with 19" and 10" cabinets, making them a universal solution for a wide range of installations.

High current performance in rack PDU power strips

Lanberg PDU rack power strips feature high current performance, including an automatic fuse with an ultra-short response time of less than 1 ns. The redundant cross-section of the power cord means reliable power to the devices plugged into it, ensuring stable and safe operation even under full load. This makes the Lanberg power distribution strip a dedicated solution for demanding professionals, which will be perfect, for example, in a server environment, but also in a home or business installation.

Convenient mounting of 1U rack PDU power strips.

The design of Lanberg power strips has been prepared exclusively for horizontal butt mounting in all types of racks. With its universal 1U height and unscrewable mounting ears, it allows easy and flexible installation, including the possibility of inverted mounting. It's up to you to decide which type of mounting best suits your needs without having to juggle the layout of other equipment in the rack.

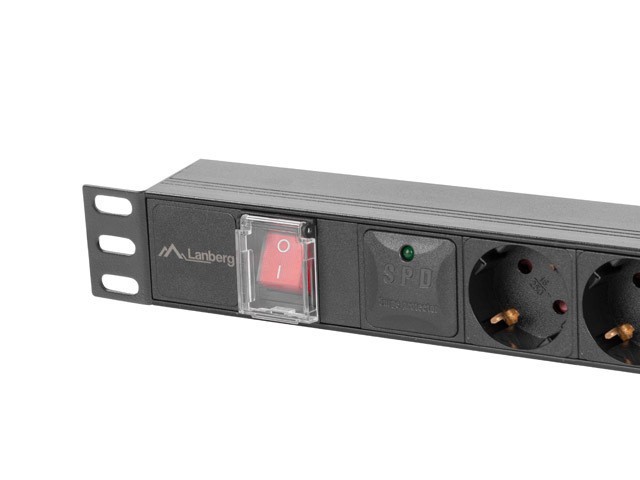

Rack PDU power strip with surge protection.

The SPD version offers an additional layer of protection through the use of a built-in varistor. The protection status is indicated by an LED, giving the user a constant view of the surge protection function. This is a must-have in a server environment, providing an extra level of protection for devices sensitive to any, even the slightest, voltage changes in the electrical grid.

Specification

Outlet type Type F
Number of outlets 5

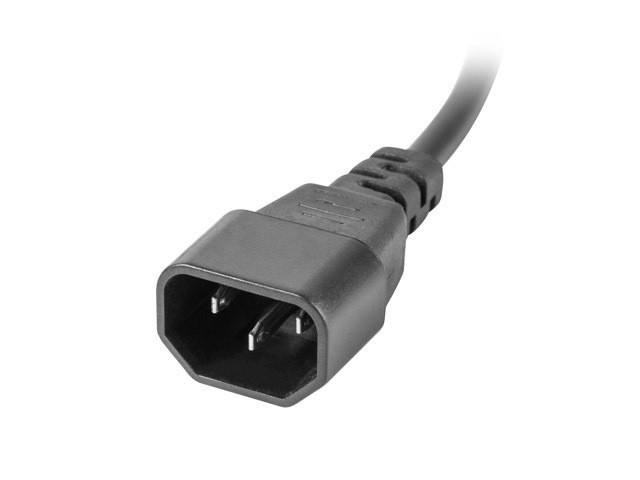

Plug type IEC C14
Cable length 200 cm
Overcurrent protection Automatic fuse
Number of fuses 1
Fuse response time 25 ns
Current rate 16 A
Maximum power 4000 W
Protections Surge protection
Insurance No
Colour Black
Specialized Rack
Switch Yes
ICT height 1 U
Mounting direction Horizontal
Size 19"
Mounting holes Yes
Material Aluminium
Length 45 mm
Width 482.7 mm
Height 45 mm
Weight 0.79 kg

Typ av utlopp
Typ F
Antal uttag
5
Typ av stickpropp
IEC C14
Längd pa kabel
200 cm
Aktuell ränta
10 A
Maximal effekt
2500 W
Klassificering av väderbeständighet
IP20
Skyddsatgärder
Överspänningsskydd
Försäkring
Nej
Färg
Svart
Specialiserad
Rack
Växel
Ja
Storlek
19"
IKT-höjd
1 U
Monteringsriktning
Horisontell
Monteringshal
Ja
Material
Aluminium
Längd
45 mm
Bredd
482.7 mm
Höjd
45 mm
Vikt
0.79 kg

Ladda ner filer

Produktkort PL.
Produktkort EN.
Försäkran om överensstämmelse (flerspråkig)
