LAN-kablar

LAN-KABEL CAT.7 SFTP 305M SOLID CU LSZH GRÅ CPR + FLUKE GODKÄND

Tillverkarens kod: LCS7L-11CU-0305-S
EAN: 5901969427646
Garanti: 24m
IKT-kategori: Kat. 7
Typ av skärmning: S/FTP
Material för ledare: Koppar (CU)
Material för beläggning: LSZH
Produktbeskrivning
Banner

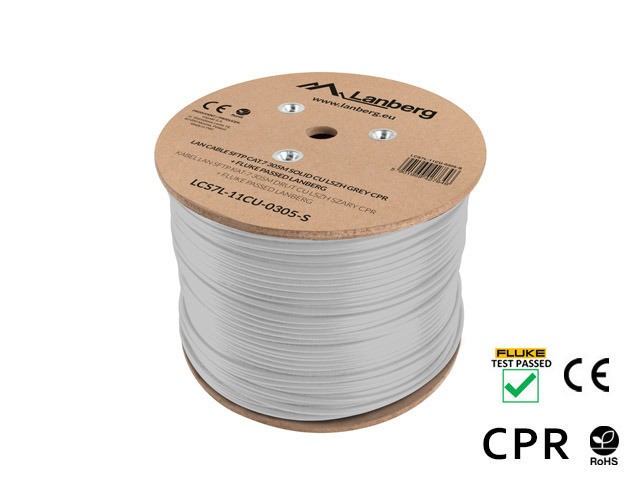

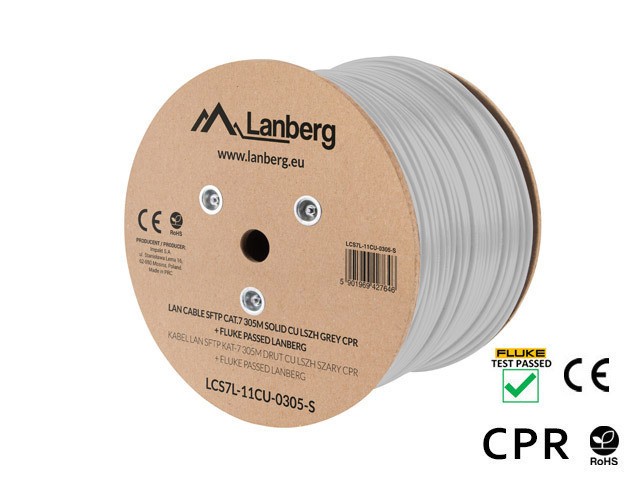

High quality LANBERG cat.7 cable on 305m reel. The product is made of 100% copper and has additional braided shielding. Each meter of cable has been marked with a printed length counter. All these elements will facilitate the work of installers, and the cable itself will be great for all kinds of data centers.



CAT.7 SFTP

CU MATERIAL

The use of copper material in the product will ensure the highest level of safety (it can withstand high temperatures), flexibility (despite its hardness, it is easy to work with and bendable) and the highest performance - copper has the highest electrical conductivity of all base metals (in comparison, aluminum has only 61% of the conductivity of copper).

LSZH

LSZH – abbreviation for Low Smoke Zero Halogen, means that the product is made of materials that do not emit harmful gases during exposure to high temperatures, which significantly increases the level of safety in the event of the above-mentioned incident. Cables of this class are increasingly becoming a standard in new developments and requirements of modern computer networks and structures.

CPR

The Contruction Products Regulation (CPR) directive, in a nutshell, deals with fire safety for categories of cables and wires. Based on it, national regulations indicate what class of products should be used for specific construction projects, providing a sort of benchmark for manufacturers regarding the required quality.

FLUKE PASSED

Fluke Corporation is a company that specializes in measuring and documenting the performance of various ICT and electrical cables. Products that have passed Fluke's rigorous tests can be considered the best solutions in their field and be confident in the actual technical values of the cables and the quality of their workmanship.

SPECIFICATION

- Category 7 SFTP LAN cable (extra braided shielding).
- Length: 305m.
- Cable conductors made of pure copper (CU 100% copper).
- AWG 23 (4*2*0.58mm).
- Conductor construction: single wire.
- Color: COOL GRAY 5C.
- Length meter imprint every meter of cable.
- PVC outer insulation: 7.8mm.
- HDPE conductor insulation: 1.38mm.
- Operation up to 600Mhz.
- Recommended connector/guide diameter for braided conductors: 1.45mm.
- Packaging: drum.
- Package dimensions (S x G x W): 50x50x52cm.

Electrical parameters (20 degrees):

- Conductor resistance (max.): ?9.5?/100m
- Pair-to-ground capacitance: ?160PF / 100m
- Impedance characteristics: 100?±15 (4~250MHz)  100?±22(250~600MHz).
- Storage and transport temperature: 0 - 60 degrees.
- Operating temperature: -20 - 75 degrees.
- Operating distance: 100m.

IKT-kategori
Kat. 7
Typ av skärmning
S/FTP
Material för ledare
Koppar (CU)
Material för beläggning
LSZH
Kategori för reaktion vid brand (Euroclass)
Dca
Ledarens struktur
Enkel trad
Ledarens tjocklek
0.58 mm
AWG
23
HDPE-isolering
1.35 mm
Eftersläpande tjocklek
0.55 mm
Yttre diameter
7.8 mm
Maximal arbetsfrekvens
600 MHz
Längd pa kabel
305 m
Bandwith
10 Gbps
Färg
Gra
Temperaturomrade under användning
-20 - 75 °C

Ladda ner filer

Fluke Test
Declaration of performance (DOP)
Deklaracja właściwości użytkowych (DWU)
Produktkort PL.
Produktkort EN.
Försäkran om överensstämmelse (flerspråkig)
