Keystony

KEYSTONE MODUL RJ45->LSA CAT.6 FTP 90°

Tillverkarens kod: KSF6-1090
EAN: 5901969415872
Garanti: 0m
Typ: Modul
Anslutningar: RJ-45
IKT-kategori: Kat. 6
Typ av skärmning: S/FTP
Produktbeskrivning

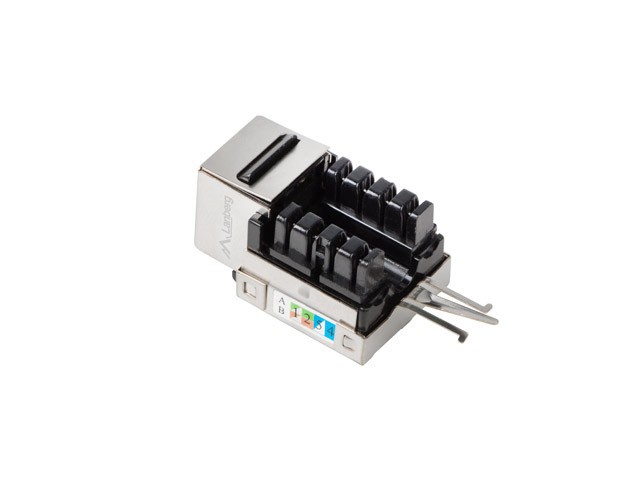

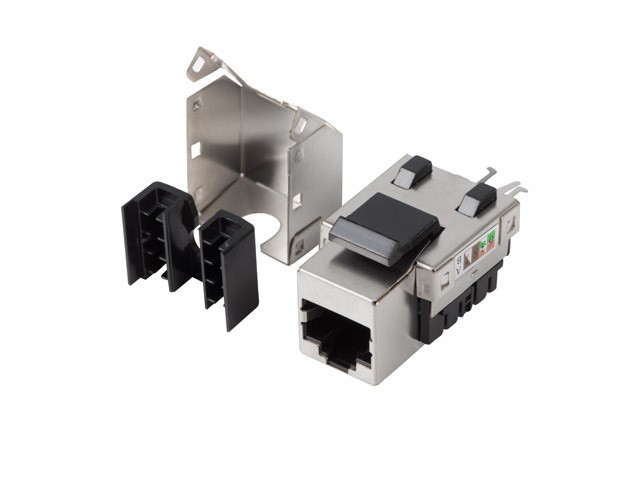

FTP RJ45 cat.6 keystone socket can be installed in any adapter for keystone connectors with dimensions (height x width) 16,10x14,50mm eg in adapters for 45x45 sockets, electrical equipment frames, modular panels, thanks to which the list of applications is very wide this module. The LAN socket has an IDC connector cover and a 568A/B colored connection sequence designation.


It is possible to connect cables in the 568B and 568A sequences.

Universal slotted joints compatible with the LSA tool.

Made based on PCBA printed circuit board.


• Connector:
external: 1 x female RJ45 socket (8P / 8C)
internal: LSA
• Cat.6
• Shielded (FTP)
• Compliant with Cat.5e requirements
EIA/TIA 568, EN 50173, ISO/IEC 11801
• Designed for stranded / solid wire or cabling up to 0.644 mm (22 - 26 AWG)
PoE support in keystone: up to 36V

Typ
Modul
Anslutningar
RJ-45
IKT-kategori
Kat. 6
Typ av skärmning
S/FTP
Material i fodral
Metall
Material f￶r kontaktdon
Fosforbrons
Färg
Silver
AWG
22 - 26
Typ av PoE-strömförsörjning
PoE
Maximal sp¦nning
36 V
Keystone-port bredd
14.5 mm
Keystone-port höjd
16.1 mm
Temperatur i omgivningen
-10 - 60 °C

Ladda ner filer

Fluke netwroks test
Produktkort EN.
Produktkort PL.
Försäkran om överensstämmelse (flerspråkig)
